CERTIFICATIONS ECW 50 Hybrid
1. AIR PERMEABILITY - WATER TIGHTNESS - WIND RESISTANCE
| TYPOLOGY | SECTOR | CLASS | INSTITUTE | DATE | STANDARD | NUMBER |
|---|---|---|---|---|---|---|
| AIR PERMEABILITY | A E | EN 12152:2002-02 | ||||
| FIXED STICK CURTAIN WALL CONSTRUCTION |
RESISTANCE TO WIND LOAD | Design Load: + 1.5 kN/m² / – 1.5 kN/m² | IFT
ROSENHEIM |
07.09.2023 | EN 13116:2001-07 | 23-002579-PR01 NW-B01-02-en-01 |
| Safety Load: + 2.25 kN/m² / – 2.25 kN/m² | ||||||
| WATERTIGHTNESS | RE 1200 | EN 12208:1999-11 |
| TYPOLOGY | SECTOR | CLASS | INSTITUTE | DATE | STANDARD | NUMBER |
|---|---|---|---|---|---|---|
| AIR PERMEABILITY | A E 1200 | EN 12152:2002-02 | ||||
| FIXED STICK CURTAIN WALL
CONSTRUCTION (STRUCTURAL TYPE) |
RESISTANCE TO WIND LOAD | Design Load: + 2.0 kN/m² / – 2.0 kN/m² | IFT
ROSENHEIM |
21.02.2024 | EN 13116:2001-07 | 23-003713-PR01 NW-B01-02-en-01 |
| Safety Load: + 3.0 kN/m² / – 3.0 kN/m² | ||||||
| WATERTIGHTNESS | RE 1200 | EN 12208:1999-11 |
| TYPOLOGY | SECTOR | CLASS | INSTITUTE | DATE | STANDARD | NUMBER |
|---|---|---|---|---|---|---|
| AIR PERMEABILITY | 4 | EN 12207:2016-12 | ||||
| TILT AND TURN WINDOW
(STANDARD TYPE) |
RESISTANCE TO WIND LOAD | C5/B5 | IFT
ROSENHEIM |
17.10.2023 | EN 13116:2001-07 | 23-002579-PR02
NW-A01-0203-en-01 |
| WATERTIGHTNESS | E1050 | EN 12208:1999-11 |
| TYPOLOGY | SECTOR | CLASS | INSTITUTE | DATE | STANDARD | NUMBER |
|---|---|---|---|---|---|---|
| AIR PERMEABILITY | 4 | EN 12207:2016-12 | ||||

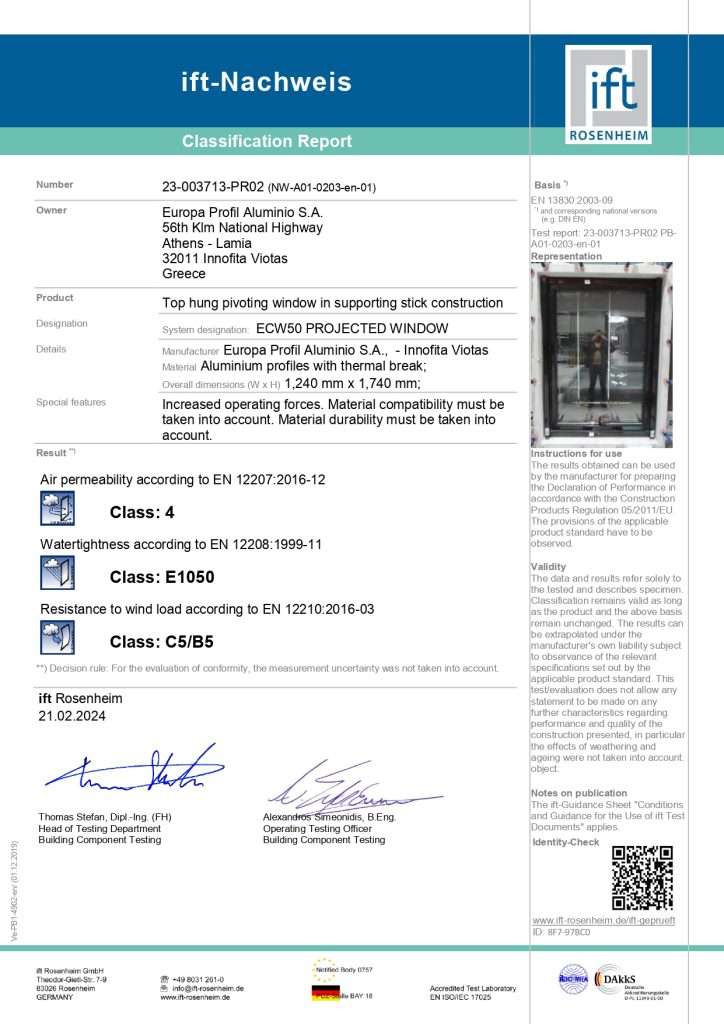

| TOP HUNG
WINDOW |
RESISTANCE TO WIND LOAD | C5/B5 | IFT
ROSENHEIM |
21.02.2024 | EN 12210:2016-03 | 23-003713-PR02
NW-A01-0203-en-01 |
| WATERTIGHTNESS | E1050 | EN 12208:1999-11 |

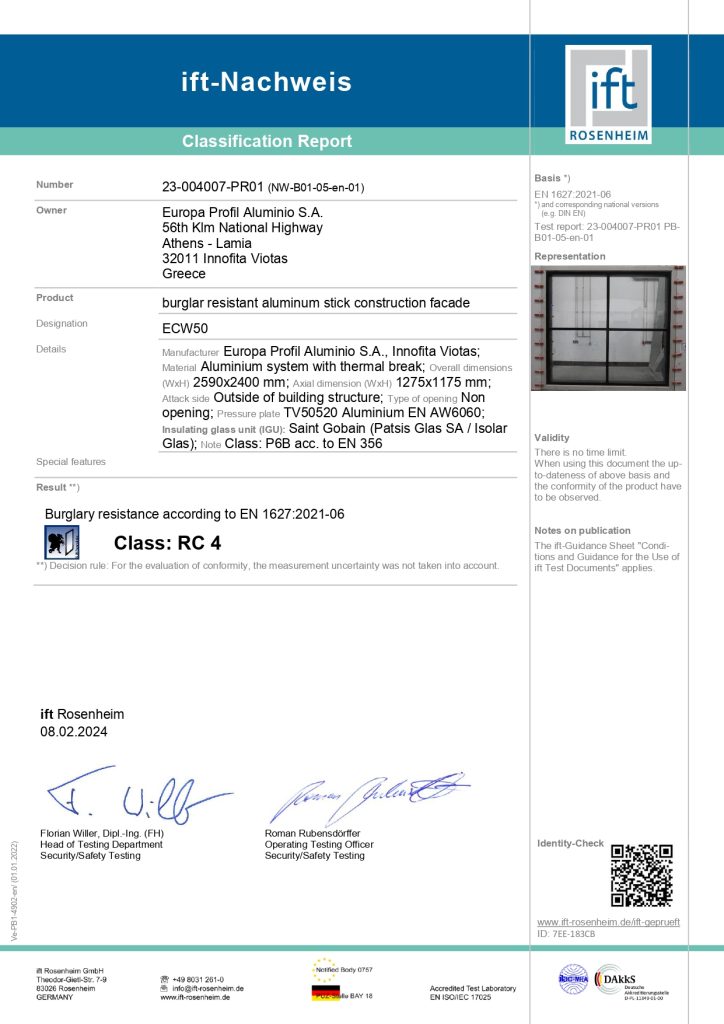

2. ANTI-BURGLAR
| TYPOLOGY | SECTOR | CLASS | INSTITUTE | DATE | STANDARD | NUMBER |
|---|---|---|---|---|---|---|
| ANTI-BURGLAR | RC 4 | IFT
ROSENHEIM |
08.02.2024 | EN 1627:2021-06 | 23-004007-PR01 NW-B01-05-en-01 |

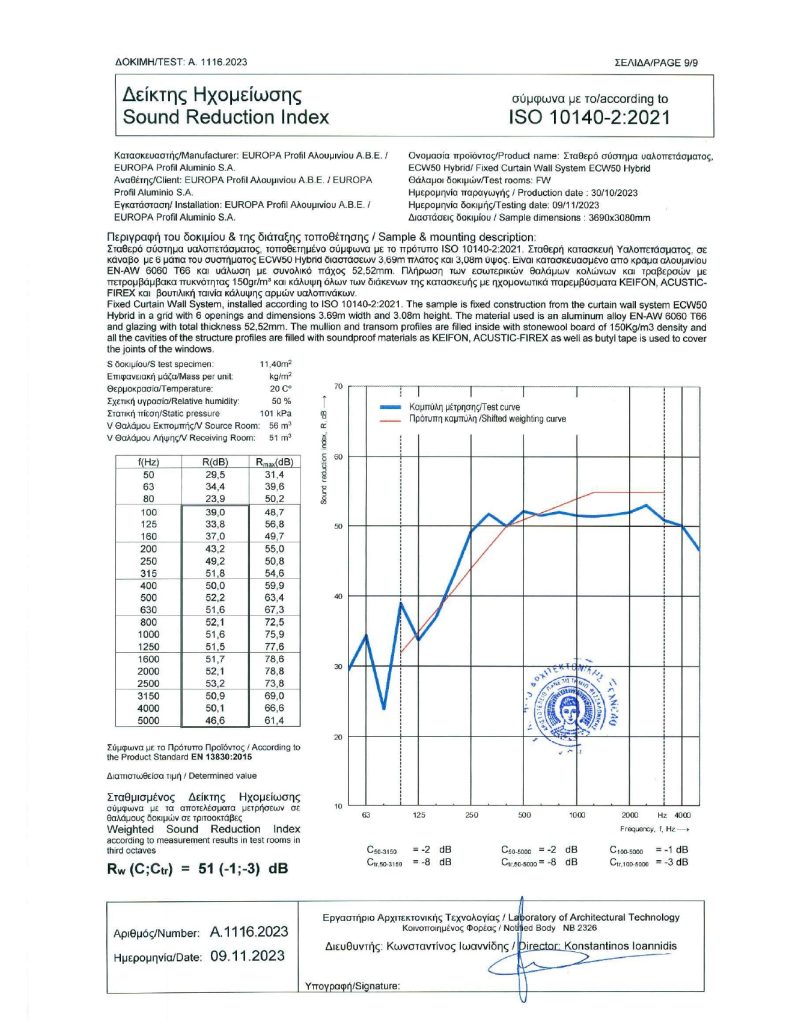

3. SOUND INSULATION
| TYPOLOGY | SECTOR | CLASS Rw (C;Ctr) | INSTITUTE | DATE | STANDARD | NUMBER |
|---|---|---|---|---|---|---|
| FIXED CURTAIN WALL SYSTEM | SOUND INSULATION | 51 (-1;-3) Db | ΑΠΘ | 09.11.2023 | ISO 10140-2:2021 | A.1116.2023 |

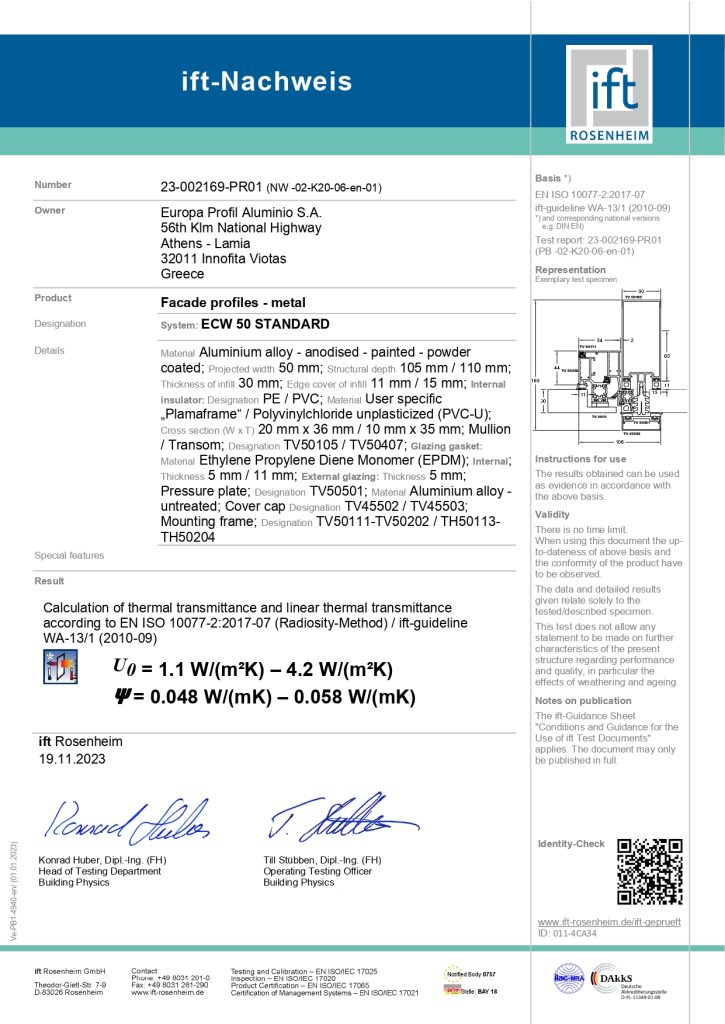

4. THERMAL INSULATION
| TYPOLOGY | SECTOR | CLASS [W/(m²K)] | INSTITUTE | DATE | STANDARD | NUMBER |
|---|---|---|---|---|---|---|
|
STANDARD TYPE |
TECHNOLOGY HYBRID | U0 = 1.1 W/(m²K) – 4.2 W/(m²K) |
IFT ROSENHEIM |
19.11.2023 | EN ISO 10077-2:2017-07
(Radiosity-Method) ift-guideline WA-13/1 (2010-09) |
23-002169-PR01
NW -02-K20-06-en-01 |
| Ψ = 0.048 W/(mK) – 0.058 W/(mK) |

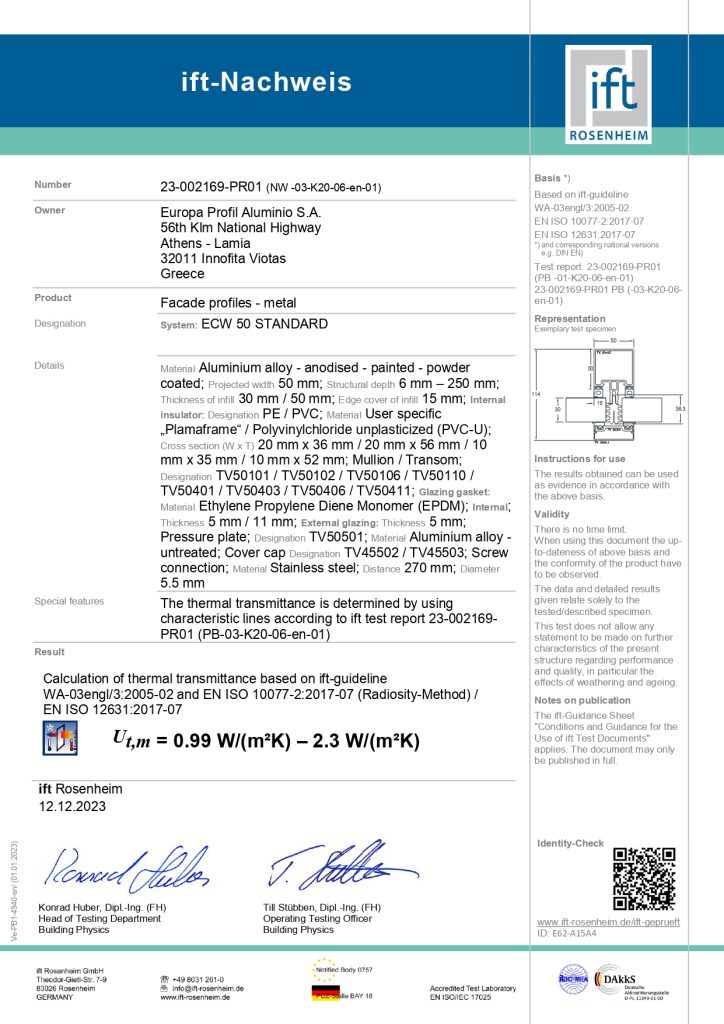

| TYPOLOGY | SECTOR | CLASS [W/(m²K)] | INSTITUTE | DATE | STANDARD | NUMBER |
|---|---|---|---|---|---|---|
| STANDARD
TYPE |
TECHNOLOGY HYBRID | Ut,m = 0.99 W/(m²K) – 2.3 W/(m²K) | IFT
ROSENHEIM |
12.12.2023 | ift-guideline WA-03engl/3:2005-02
and EN ISO 10077-2:2017-07 (Radiosity-Method) EN ISO 12631:2017-07 |
23-002169-PR01
NW -03-K20-06-en-01 |
