Three (3) automated extrusion lines with an annual production capacity of 35,000 tons of aluminum profiles.

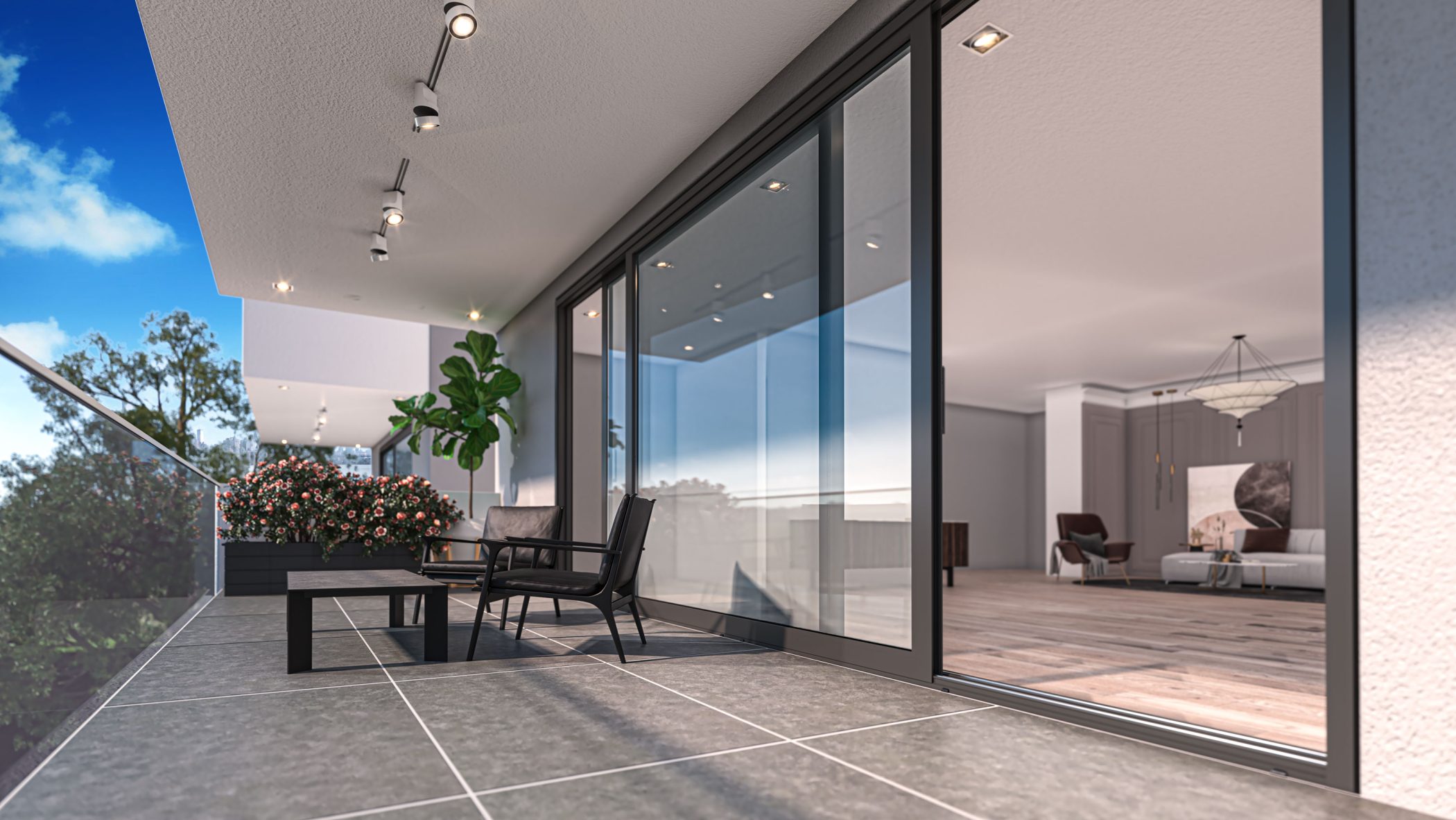

For those who want to enjoy the unobstructed view of large openings, but at the same time ensure the least energy losses and sound insulation, the ESS 10000 Hybrid series is the solution. The profiles of the series and the lifting mechanism (Lift & Slide) make it extremely functional at the high weights required by the glass on a large surface.
In the successive construction systems, a new special engineered mullion is placed on the sash (in the middle of the frame), in order to support it for very large constructions. All windows and balcony – doors can be equipped with multiple locking offering satisfactory security.
The system allows the construction of successive frames with insect screen, simple successive with fixed sash frame, four – sash joined face systems, built-in single or double sash frames and 90° angular constructions.
DETAILS
PRODUCT
PROFILE
CHARACTERISTICS
CHARACTERISTICS
- Modern aesthetics due to the straight lines design.
- Advanced security with the option of Multi-Locking Mechanism.
- Excellent thermal and sound insulation due to the use of:
- Polyamide of 24mm
- The use of double or triple glazing up to 50mm.
- Option for use of Lift & Slide Mechanism.
- Absolute sealing with:
- Specially designed sealing rubbers.
- plastic cover (PVC) and elastic block (EPDM) for bottom railings
- rubber tubular gaskets (EPDM) provide absolute seal to the sashes.
- Option for a 90° corner construction without adding a corner column.
- For complex constructions, it can be combined with EUROPA 5500 Hybrid.
FEATURES
FEATURES
Aluminium Alloy: EN AW 6060 T66
Hardness: 12 Webster
Minimum coating thickness: 75μm
Profile thickness: 1,7mm
Tolerance according to: EN 12020-02
Width of successive rail: 151,6mm (δυο φύλλα)
Width of in-wall rail: 111,3mm(τζάμι–σήτα)
Width of glass sash: 63mm
Glazing thickness: 20-42mm
Polyamide width: 18-24mm
Factor of thermal conductivity for frame: Uf από 4,0W/(m2K)
Maximum sash dimensions (WxH): Rw(C;Ctr)= 35(-1;-3) db
Maximum sash weight: 400 Kg
TYPES
TYPES

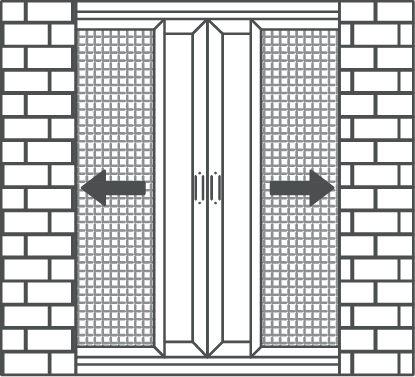

Successive (simple or with Lift & Sliding Mechanism)

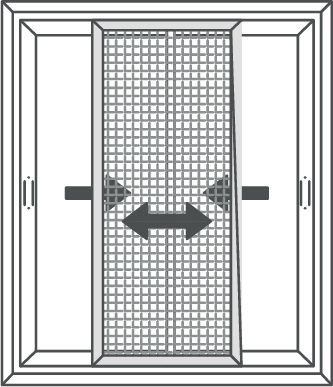

Single sash with insect screen (simple or with Lift & Sliding Mechanism)

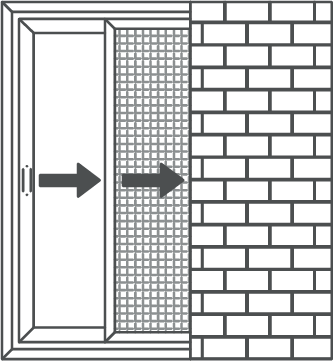

Single pocket sash (simple or with Lift & Sliding Mechanism)

Successive with fixed frame (simple or with Lift & Sliding Mechanism)

Successive with roller shutter & plisse insect screen (simple or with Lift & Sliding Mechanism)

Successive with opening frame (simple or with Lift & Sliding Mechanism)

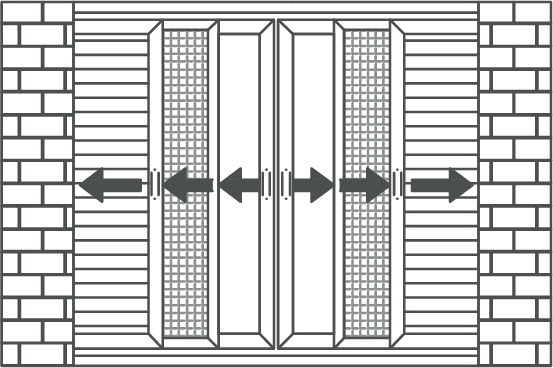

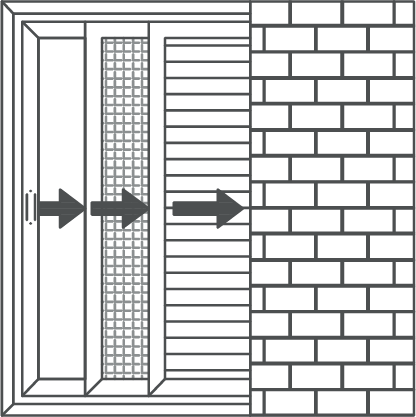

Single pocket sash with glass-insect screen – shutter sash (simple or with Lift & Sliding Mechanism)

Single pocket sash (simple or with Lift & Sliding Mechanism)
SECTIONS
SECTIONS
