LOUVRES SHADING SYSTEM

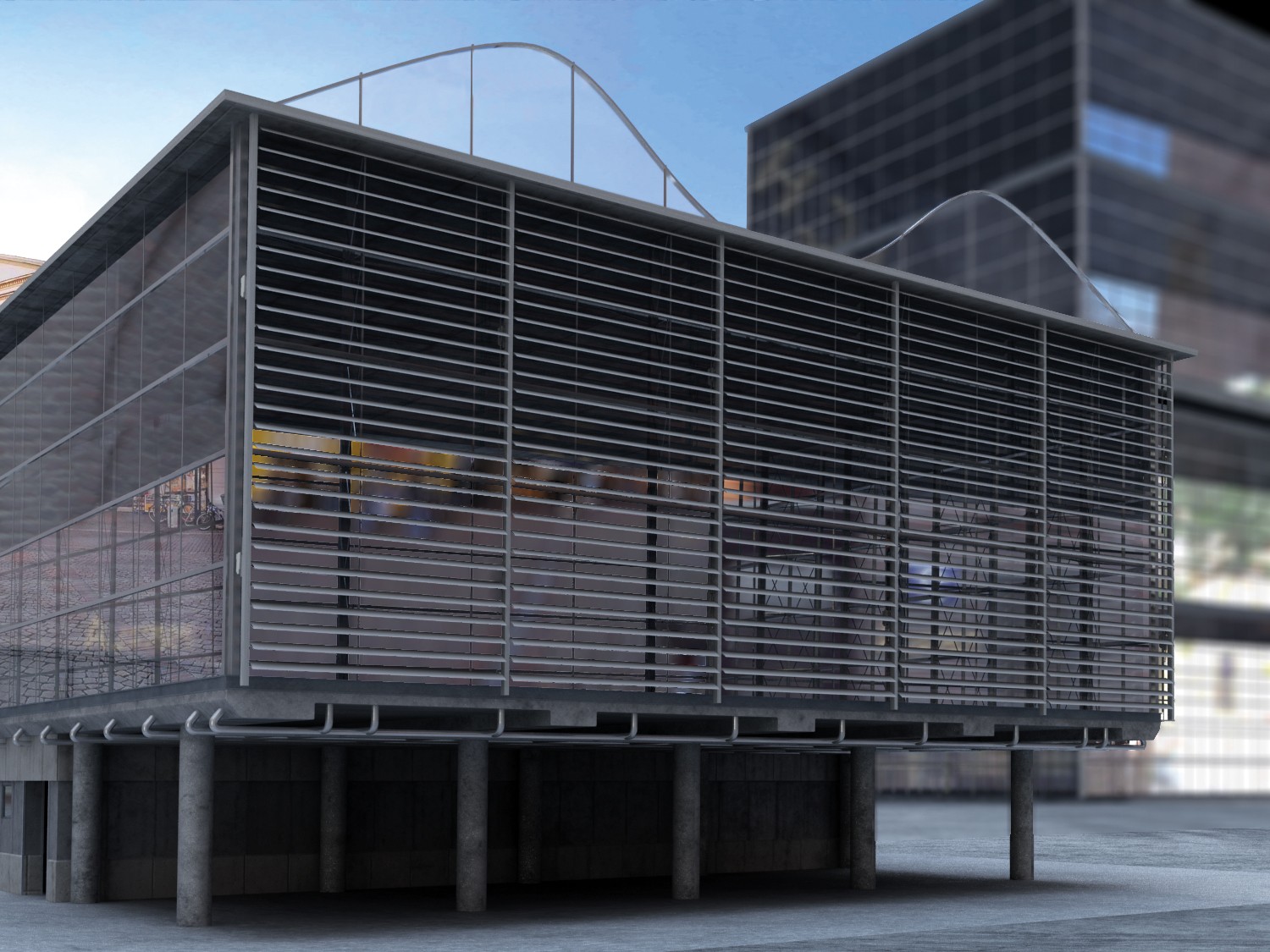

EUROPA LOUVRES SHADING SYSTEM series is the integrated energy saving proposal for sun protection in the so called “smart” buildings.
The pioneer design of the louver in the form of a flap allows easy installation on the exterior façade of both new and old buildings.
PRODUCT
PROFILE
CHARACTERISTICS
CHARACTERISTICS
- Eight louvre profiles.
- Option for pergola constructions or louvre facade of buildings.
- Movable or fixed louvres.
- SK-34, SK-40 & TV 23603 louvres, can carry rubber stripes on both sides in order to achieve maximum water insulation.
- Provides special water drainage profiles.
- It is possible for the louvres to move manually (crank) or by a motor mechanism.
FEATURES
FEATURES
Aluminium Alloy: EN AW 6060 T66
Hardness: 12 Webster
Minimum coating thickness: 75μm
Profile thickness: 1,4 – 2,3mm
Tolerance according to: EN 12020-02
Dimensions of the smallest column: 60mm x 80mm
Dimensions of the largest column: 60mm x 120mm
Width of fixed wing: 100mm
Width of watertight wing: 151mm
Width of fixed / movable wing: 200mm
Maximum columns distance: 3,0m
TYPES
TYPES
SECTIONS
SECTIONS
