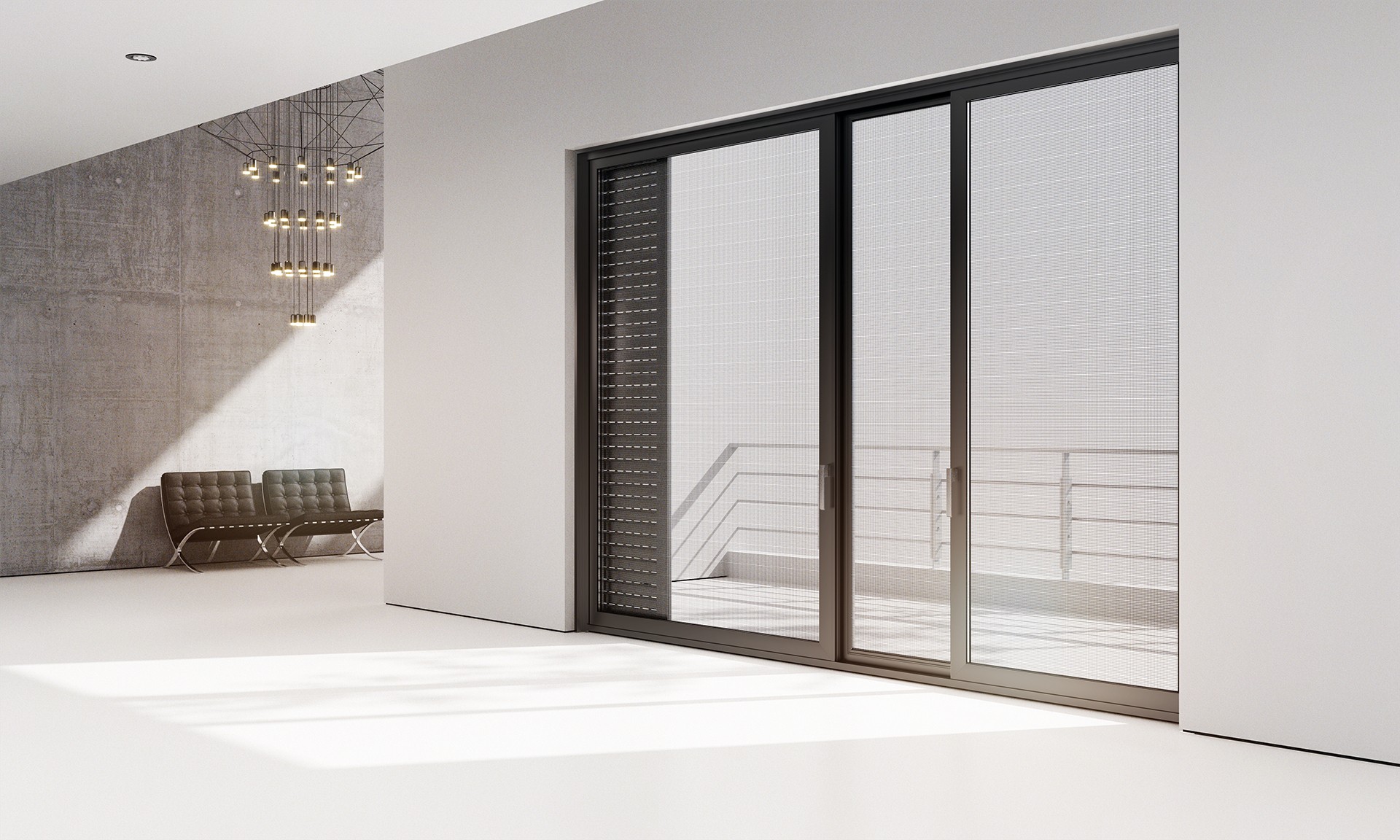

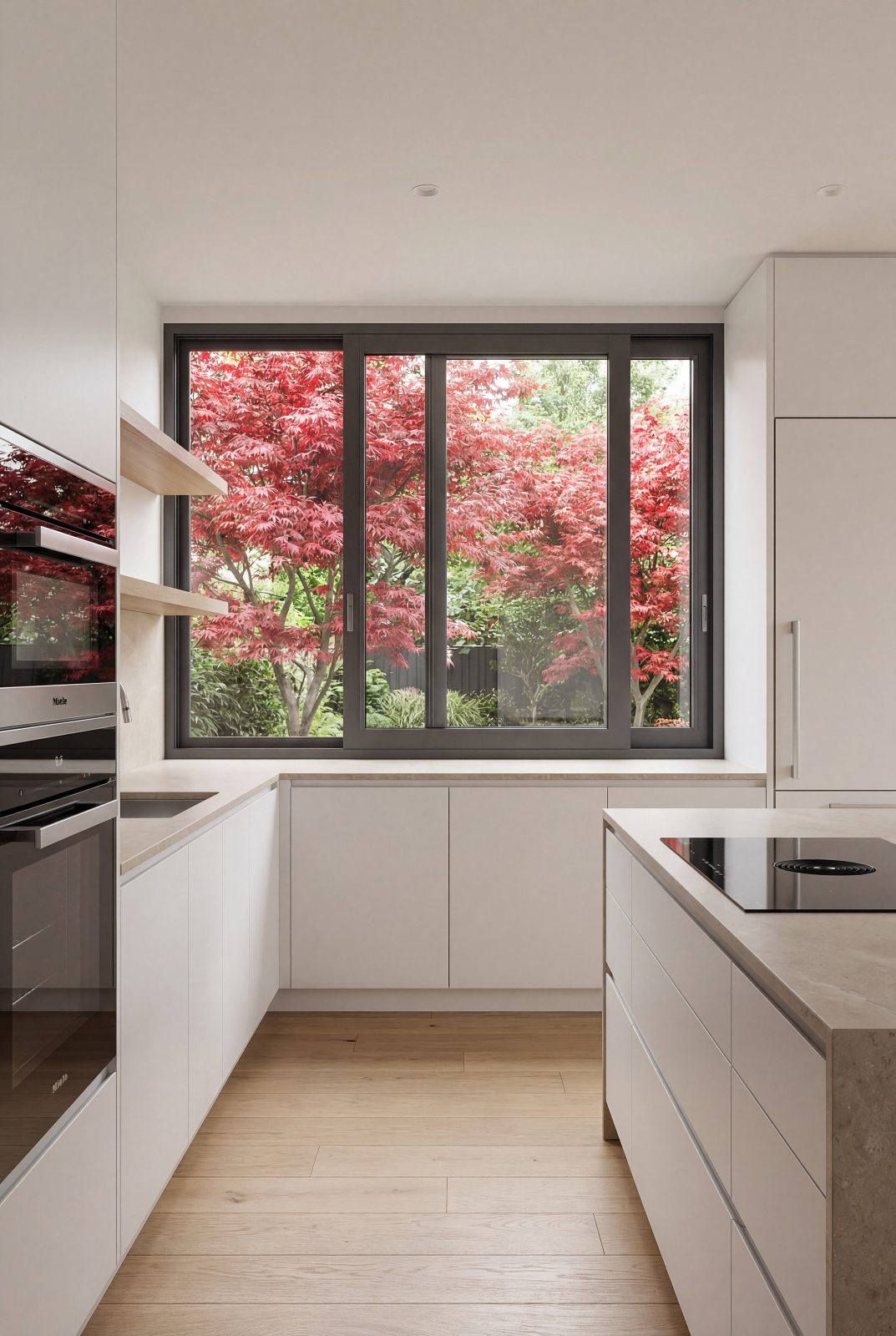

ESS 34 Hybrid is the new thermal break sliding system designed specifically to combine high quality and flexibility. The system offers wide range of construction choices.
ESS 34 Hybrid can cover all the possible typologies of sliding systems with a bottom rail of 42mm and 32mm height. The special interlock profile with visible profile at 25mm is a characteristic that provide design, unhindered view and uniqueness.
Together with the use of specially designed profiles the system provides the fabricator/constructor with the ability to cover extended dimensions of openings with height up to 2,6m and 10m2 glazing surface.
DETAILS
PRODUCT
PROFILE
CHARACTERISTICS
CHARACTERISTICS
- Smooth sliding with:
- Stainless steel lamina on rail profiles.
- Innovative, for the category of narrow rail, option for Lift & Slide Mechanism.
- Modern aesthetics with straight-line design.
- Maximum security with the option of Multi-Locking Mechanism.
- Excellent thermal and sound insulation:
- Option for double or triple glazing up to 24mm.
- Polyamides up to 24mm.
- Absolute sealing with:
- Plastic (PVC) covers of the railings
- Elastic rail block seals (EPDM) for successive and in-wall systems or rubber tubular gaskets (EPDM)
- Two levels of water channeling (to the outer side of the frame), for better drainage of the rail.
- Optional Lift & Slide Mechanism that which completely seals the sash with the frame.
- Higher, minimal, aesthetics and protection from the insects due to the use of hidden insect screen.
- Unparalleled aesthetic perfection for greater opening and unobstructed passage with the new flat bottom rail, especially useful in cases of person with moving disability .
- Three options for locking sash:
- Simple
- With handle shape for greater durability to stresses
- With clip
- Option for use of “anti-bi-metal” polyamide on system profiles to eliminate distortion shrinkage and expansions.
- Option for Fix & Slide construction typology (especially useful in cases of hotel rooms).
- Can be combined with the opening systems EOS 68 Hybrid and EOS 60 Hybrid for complex constructions.
FEATURES
FEATURES
Aluminium Alloy: EN AW 6060 T6
Hardness: 12 Webster
Minimum coating thickness: 75μm
Profile thickness: 1,3-1,4mm
Tolerance according to: EN 12020-02
Width of successive rail: 91mm (two sashes)
Width of in-wall rail: 95mm (glass-insect screen-shutter)
Width of glass sash: 34mm
Glazing thickness: έως 24mm
Polyamide width: 20-24mm
Factor of thermal conductivity for frame: Uf from 2,6 up to 4,2 W/(m 2K)
Maximum sash dimensions (WxH): 2,3m x 2,5m
Maximum sash weight: 250Kg
TYPES
TYPES

Successive (simple or with Lift & Sliding Mechanism)

Single sash with insect screen (simple or with Lift & Sliding Mechanism)

Single pocket sash (simple or with Lift & Sliding Mechanism)

Successive with fixed frame (simple or with Lift & Sliding Mechanism)

Successive with roller shutter & plisse insect screen (simple or with Lift & Sliding Mechanism)

Successive with opening frame (simple or with Lift & Sliding Mechanism)

Single pocket sash with glass-insect screen – shutter sash (simple or with Lift & Sliding Mechanism)

Single pocket sash (simple or with Lift & Sliding Mechanism)
