ESS 47 Hybrid

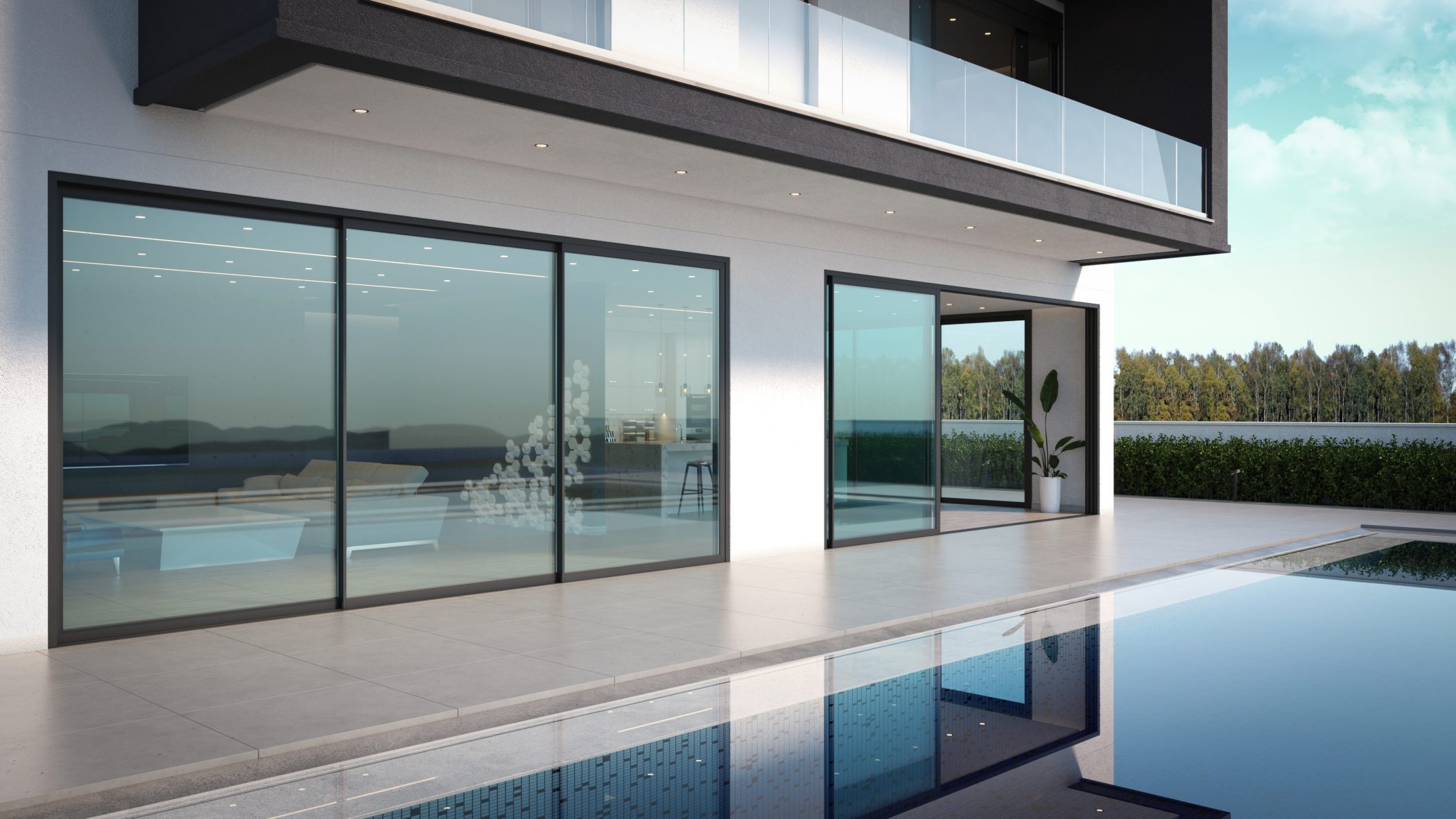

ESS 47 Hybrid is the new advanced proposition by Europa for sliding architectural systems with thermal insulation.
The system offers high standards, with simple straight line design, that combines the perfect functionality with the modern aesthetics.
Furthermore, ESS 47 Hybrid offers the option of Fix & Slide typology. The specific typology makes the system the ideal choice for hotel constructions, where advanced performance coefficients are needed.
The system offers the option for minimal aesthetics and almost unobstructed view with the use of narrow profiles. In this aspect the system is designed with profiles of bottom rails of 42mm and 34mm width as also with optional hidden sliding insect screen of only 25mm width.
The system can be perfectly combined with the EOS 60 Hybrid, EOS 68 Hybrid & EOS 8500 Hybrid systems for combosite structures.
PRODUCT DETAILS
PRODUCT
PROFILE
CHARACTERISTICS
CHARACTERISTICS
- Smooth sliding with:
- stainless steel lamina on rail profiles.
- optional Lift & Slide Mechanism.
- Modern aesthetics with straight line design.
- Maximum security with the option of Multi-Locking Mechanism.
- Excellent thermal insulation:
- option for double or triple glazing up to 34mm.
- polyamides up to 24mm.
- Absolut sealing with:
- plastic (PVC) covers of the railings
- elastic rail block seals (EPDM) for successive and in-wall systems or rubber tubular gaskets (EPDM)
- optional Lift & Slide mechanism
- Unhindered movement to the interior or exterior space with delicate aesthetics, with the option of low bottom rail profiles.
- Minimal aesthetics with:
- Straight-line profile design
- Narrow hook for successive sashes with width of 25mm
- Specially design of narrow sliding insect screen sash of 25mm width
- Option for flat bottom rail for double and triple successive sashes
- Option for Fix & Slide construction typology (specially designed for the needs of hotel constructions).
- Can be combined with the opening systems EOS 68 Hybrid, EOS 60 Hybrid and EOS 8500 Hybrid for complex constructions.
FEATURES
FEATURES
Aluminium Alloy: EN AW 6060 T6
Hardness: 12 Webster
Minimum coating thickness: 75μm
Profile thickness: 1,4mm
Tolerance according to: EN 12020-02
Width of successive rail: 120mm (δυο φύλλα)
Width of in-wall rail: 117mm/134mm(τζάμι–σήτα–πατζούρι)
Width of glass sash: 47mm
Glazing thickness: 20-34mm
Polyamide width: 22-24mm
Factor of thermal conductivity for frame: Uf from 3,0 up to 6,1 W/(m2*K)
Maximum sash dimensions (WxH): 2,5m x 3,0 m
Maximum sash weight: 400 Kgr
TYPES
TYPES

Successive (simple or with Lift & Sliding Mechanism)

Double pocket sash with glass – insect screen – shutter sash (simple or with Lift & Sliding Mechanism)

Single pocket sash (simple or with Lift & Sliding Mechanism)

Successive with fixed frame (simple or with Lift & Sliding Mechanism)

Successive with roller shutter & plisse insect screen (simple or with Lift & Sliding Mechanism)

Successive with opening frame (simple or with Lift & Sliding Mechanism)

Single pocket sash with glass-insect screen – shutter sash (simple or with Lift & Sliding Mechanism)

Adjoining successive (simple or with Lift & Sliding Mechanism)
