Three (3) automated extrusion lines with an annual production capacity of 35,000 tons of aluminum profiles.

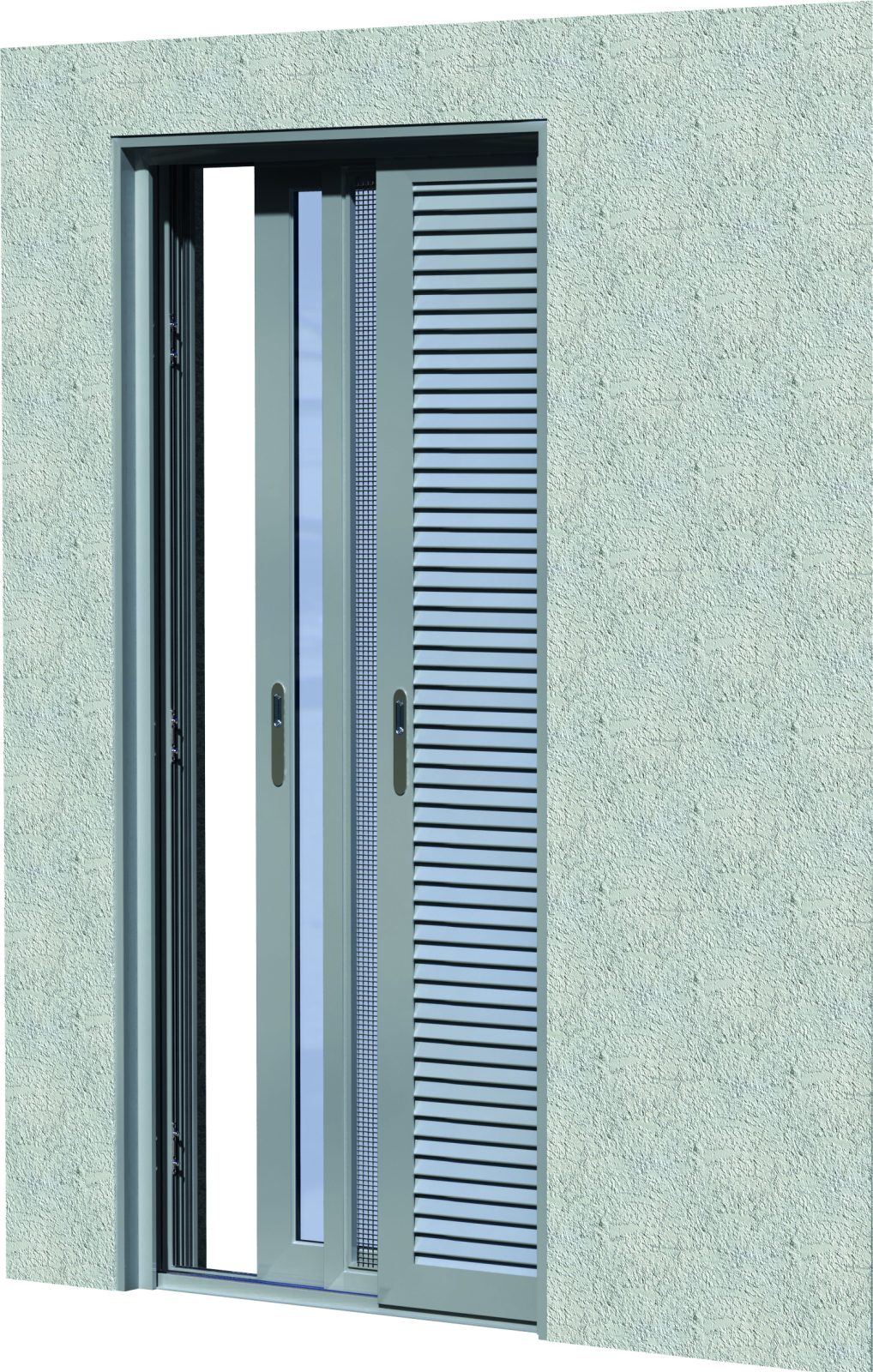

ESS 800 series is a new Economical, Sliding system with a simple straight-line design.
Designed to provide solutions for old doors and windows replacement as well as for new constructions, showing emphasis on modern aesthetic and functionality. The rollers slide on stainless steel lamina giving a straight smooth and easy movement of the sashes.
ESS 800 and EOS 850 have a common aesthetic design and can be combined perfectly. The milling process of the profiles is done in the cor responding punching machine.
Wide range of accessories from all major European Companies covers every possible construction of the system.
PRODUCT
PROFILE
CHARACTERISTICS
CHARACTERISTICS
- Modern aesthetics due to the straight-line design.
- Option for Multi-Locking Mechanism for improved safety.
- Smooth sliding with the use of stainless-steel lamina on rail profiles.
- Use of glazing up to 21mm.
- Can be combined with the EOS 850 opening system for complex constructions.
FEATURES
FEATURES
Aluminium alloy: EN AW 6060 T6
Hardness: 12 Webster
Minimum coating thickness: 75μm
Profile thickness: 1,2mm
Tolerance according to: EN 12020-02
Width of successive driver: 89mm (double sash)
Width of in-wall driver: 113mm (glass-insect screen-shutter)
Dimensions of glass & shutter sash: 34mm
Glazing thickness: up to 21mm
Maximum sash dimensions (WxH): 1,6m x 2,6m
Maximum sash weight: 100Kg
TYPES
TYPES

Successive (simple or with Lift & Sliding Mechanism)

Double pocket sash with glass – insect screen – shutter sash (simple or with Lift & Sliding Mechanism)

Single sash with insect screen (simple or with Lift & Sliding Mechanism)

Single pocket sash (simple or with Lift & Sliding Mechanism)

Successive with roller shutter & plisse insect screen (simple or with Lift & Sliding Mechanism)

Successive with opening frame (simple or with Lift & Sliding Mechanism)

Single pocket sash with glass-insect screen – shutter sash (simple or with Lift & Sliding Mechanism)

Single pocket sash (simple or with Lift & Sliding Mechanism)
SECTIONS
SECTIONS
