Three (3) automated extrusion lines with an annual production capacity of 35,000 tons of aluminum profiles.

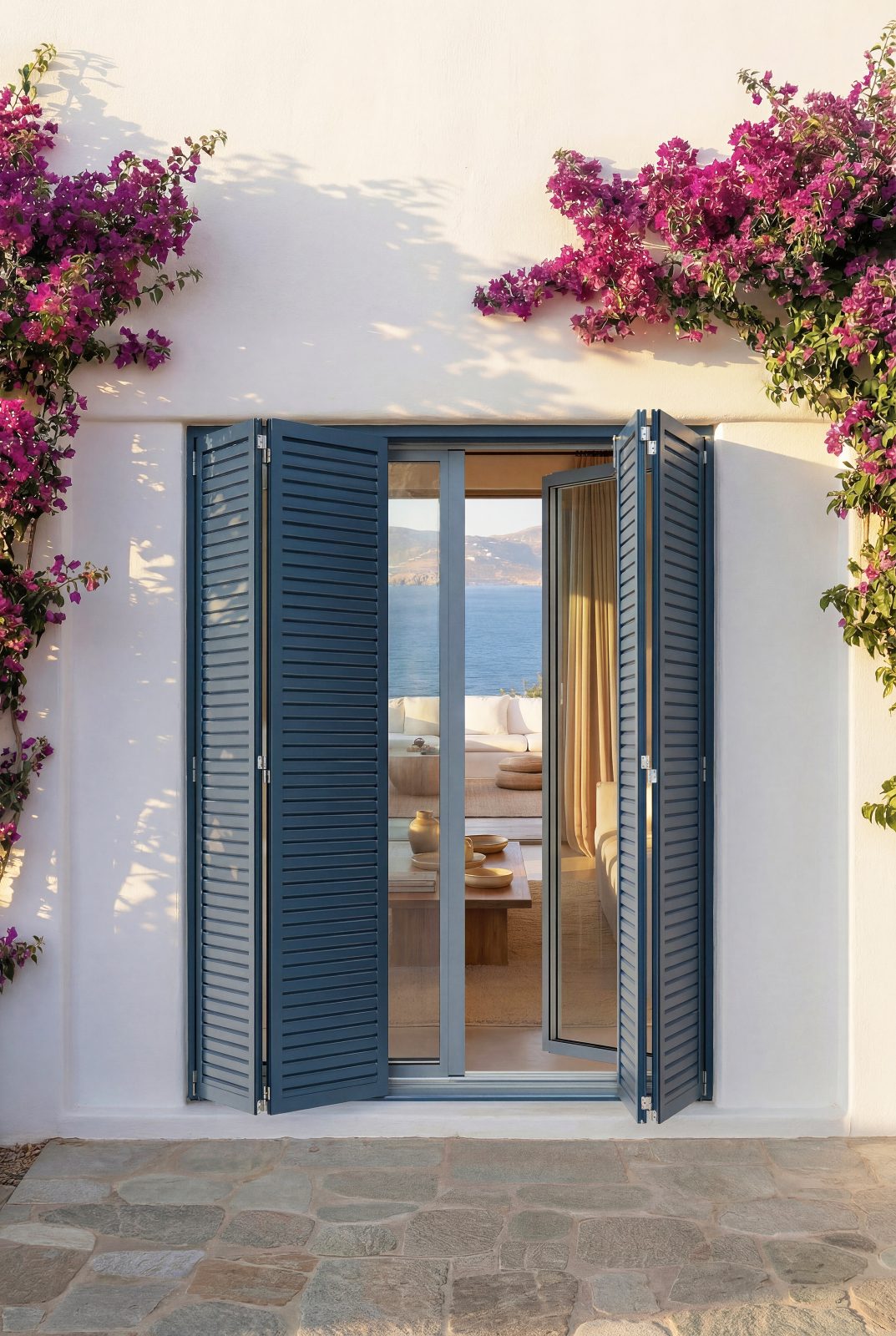

The EWS 40 is a comprehensive system designed to meet a wide range of construction needs in buildings. It effectively addresses functional requirements, such as shutters that provide security and shading, while also meeting aesthetic needs, as it can be used for decorating both exterior and interior spaces when combined with systems like EUROPA ELEMENT. It is suitable for constructions in both modern and traditional settlements, supporting various architectural typologies, including casement, sliding, folding, and fixed panels.
The system offers a broad selection of shutter louvers and shading profiles. The option for an adjustable louver mechanism allows for customized ventilation and lighting control. Additionally, the integrated insect screen provides protection from insects, allowing uninterrupted ventilation throughout the year.
PRODUCT
PROFILE
CHARACTERISTICS
CHARACTERISTICS
- Suitable for any configuration requirement in modern or traditional buildings.
- All configuration typologies (opening, sliding, folding, fixed) are made with the same sash.
- The shutter sash pr ovides security, shading and accepts insect protection screen.
- It accepts a movable louver mechanism for adjusting the lighting and ventilation in the space.
- Can be combined with existing older opening and sliding systems.
- Ideal for shading or wind protection with the EUROPA Pergola (EPS-80).
- Can be combined with EUROPA ELEMENT for unique aesthetics and decoration for every type of space.
- Suitable for installation on balconies, in the exterior of the glass railings EUROPA Glass Railing EGR-8400.
FEATURES
FEATURES
Aluminium Alloy: EN AW 6060 T6
Hardness: 12 Webster
Minimum coating thickness: 75μm
Profile thickness: 1.3-2 mm
Tolerance according to: EN 12020-02
Dimensions of frame: 48mm x 43mm
Dimensions of glass sash: 40mm x 54mm
Maximum sash dimensions (WxH)[Folding]: 0.7m x 2.5 m
Maximum sash weight [Folding]: 60 Kgr
Maximum sash weight [Sliding]: 70 Kgr
TYPES
TYPES
SECTIONS
SECTIONS
