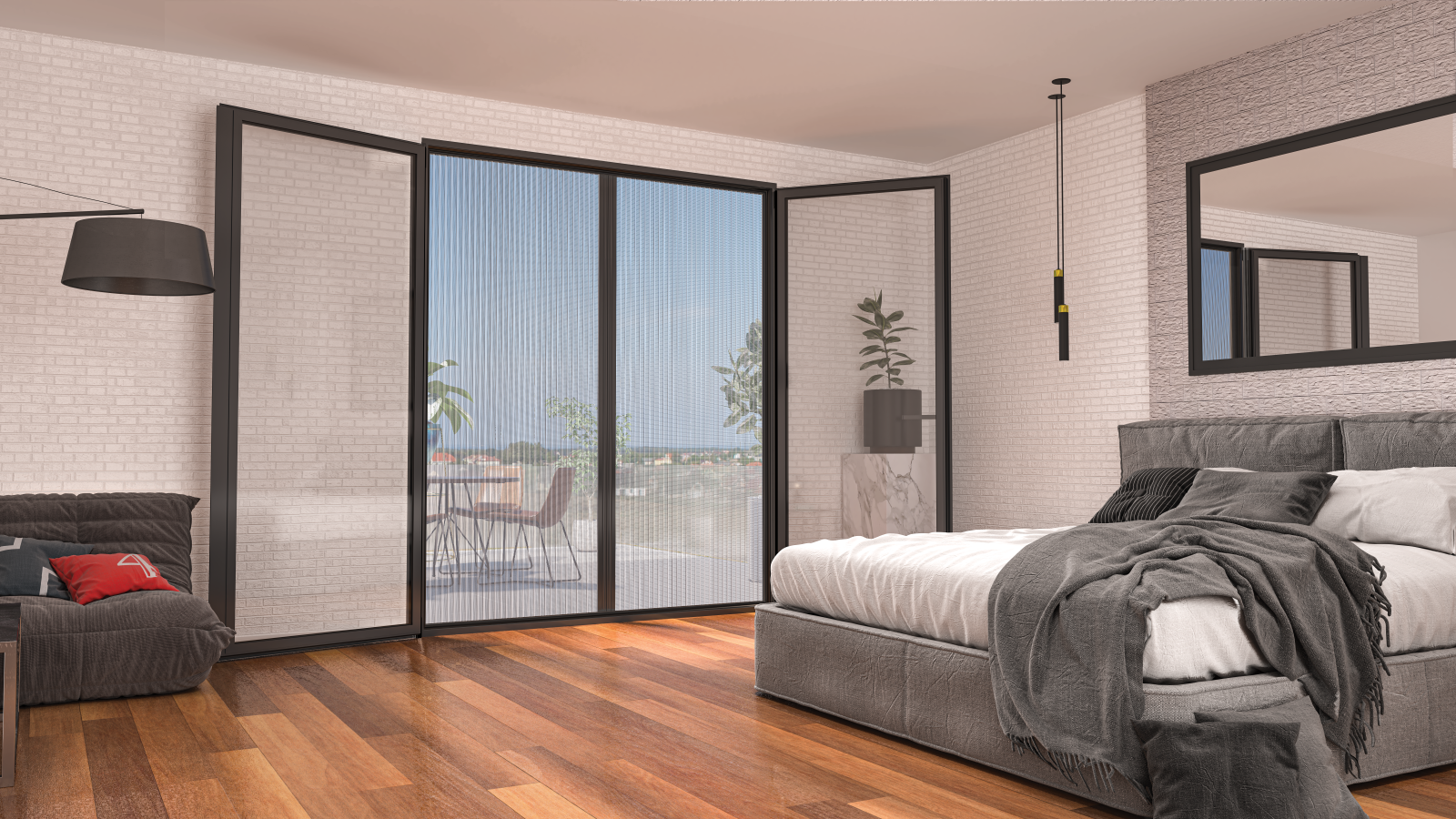

The EIS 22P insect screen system is the combination of economy and superior aesthetics.
EIS 22P is the latest version of EIS 27P. It achieves the same results in functionality and quality, focusing on the soundless movement, the stability, and the aesthetics of the plisse mesh. The mesh is also offered in two color options. In black color, which is the basic version, and in gray color upon special order. At the same time the operating cords are made of special polyester material that offer ease and durability in use.
The significant advantage is the narrower bottom rail of 22mm width, which is narrower compared to most of the corresponding insect screens. The fabric is also narrower, just 16mm wide, achieving greater aesthetics and discretion. At the same time, the extremely low height of the bottom rail, just 8mm allows almost unimpeded passage.
EIS 22P combines all the advantages of EIS 27P, with a narrower bottom rail (width of only 22mm and height of only 8mm) and mesh width at 16mm. Discreet aesthetics and ideal solution in openings with space limitation.
ATTENTION TO DETAILS
PRODUCT
PROFILE
CHARACTERISTICS
CHARACTERISTICS
- Mesh of fabric made of reinforced polyester material with pleats (plisse type) in two color types:
- Black color mesh which is the basic version.
- Gray color mesh upon special order.
- Smooth, quiet movement, with lower guide 22mm wide and 8mm high for almost unimpeded passage.
- Special cords made of polyester material to support the sail and smooth operation.
- Special design for the possibility of bilateral movement, especially useful in cases of overlapping frames.
FEATURES
FEATURES
Maximum dimensions
- Single Sash System 1,80 Χ 2,50 m
- Double Sash System 3,40 Χ 2,50 m
- Dual Side Sliding Sash System 1,80 Χ 2,50 m
- Vertical Sash System 1,40 Χ 2,50 m
- Aluminium Alloy: AIMgSi-0.5 F22 2
- Hardness: 12 Webster
- Minimum Coating Thickness: 75μm
TYPES
TYPES

Dual Side Sliding Sash System

Double Sash System

Vertical Sash System
